DOOH

Sport Perimeter Series

PRODUCT
VIEW

PRODUCT
SPECIFICATION

PRODUCT
DOWNLOAD

REQUEST A
QUOTE

DOOH Sport Perimeter LED screen are manufactured using the highest quality components, emitting stunningly bright LED perimeter screens with superior contrast and color reproduction. Each system has an IP65 IP rating meaning they are built to withstand challenging weather conditions like similar stadium LED screens.
Our LED perimeter display is manufactured with 7500 nits brightness, delivering brilliant and vibrant images even in direct sunlight, making them ideal for TV broadcast applications in both indoor and outdoor environments. VIVISOMA Sport Perimeter Series is available in the following pixel pitches:
SP-6.67mm, 8mm,10mm


Product Features

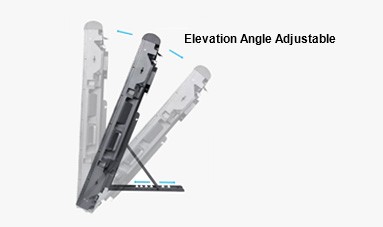

ADJUSTABLE BACK BRACKETS

This structure makes it possible to adjust the screen bracket angle and enable more audience notice the content of advertising.

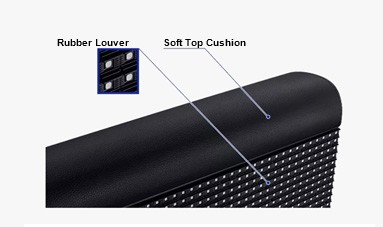

SOFT MASK&SOFT TOP

Soft module mask on surface and soft rubber on top of the screen body are equipped to protect players from getting hurt when crash on the screen body.

REFRESH RATE

At least a high refresh rate of up to 3840HZ. High-definition images and videos are perfectly provided by this display.

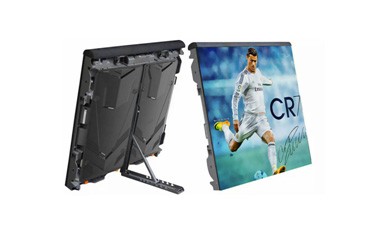

TURN TO BIG RENTAL LED DISPLAY

By moving the top protection pad and rear bracket, the cabinets can be fixed installation to big led video wall for rental requirement.

SUPER HIGH BRIGHTNESS

7500 nits brightness, delivering brilliant and vibrant images even in direct sunlight, making them ideal for TV broadcast applications in both indoor and outdoor environments

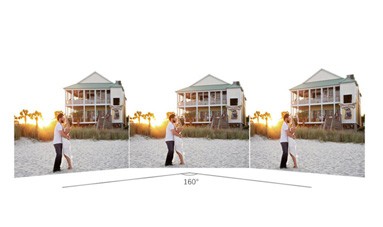

Super Wide Viewing Angle

The horizontal and vertical viewing angles are so wide that it is suitable for environments with a wide horizontal span.

SP-6.67

• LED Type: SMD2727 1R1G1B
• Cabinet Resolution: 144x144
• Brightness: 7500 NITS
• Refresh Rate: 3840 Hz
• Cabinet Size: 960x960x105mm
• Weight: 27kg
• Viewing Angle Horizontal: 160 degrees
• Viewing Angle Vertical: 160 degrees
• Input Voltage: 110~240V
• Serviceability: Rear
• Weather Rating: IP65

SP-8

• LED Type: SMD3535 1R1G1B
• Cabinet Resolution: 120x120
• Brightness: 7500 NITS
• Refresh Rate: 3840 Hz
• Cabinet Size: 960x960x105mm
• Weight: 27kg
• Viewing Angle Horizontal: 160 degrees
• Viewing Angle Vertical: 160 degrees
• Input Voltage: 110~240V
• Serviceability: Rear
• Weather Rating: IP65

SP-10

• LED Type: SMD3535 1R1G1B
• Cabinet Resolution: 96x96
• Brightness: 7500 NITS
• Refresh Rate: 3840 Hz
• Cabinet Size: 960x960x105mm
• Weight: 27kg
• Viewing Angle Horizontal: 160 degrees
• Viewing Angle Vertical: 160 degrees
• Input Voltage: 110~240V
• Serviceability: Rear
• Weather Rating: IP65
